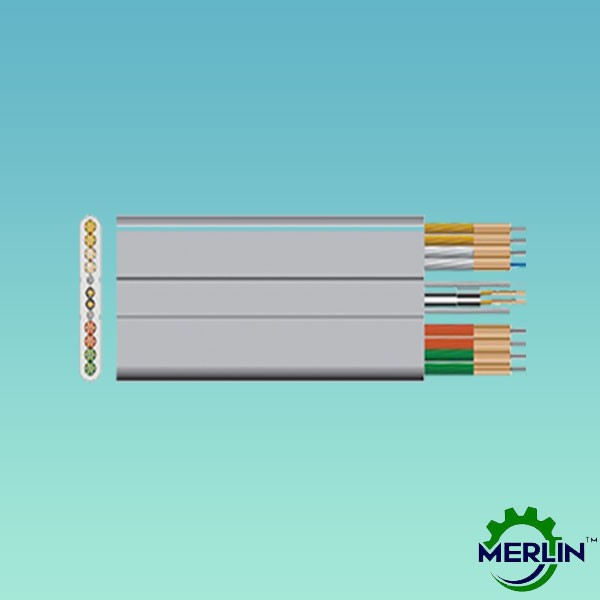

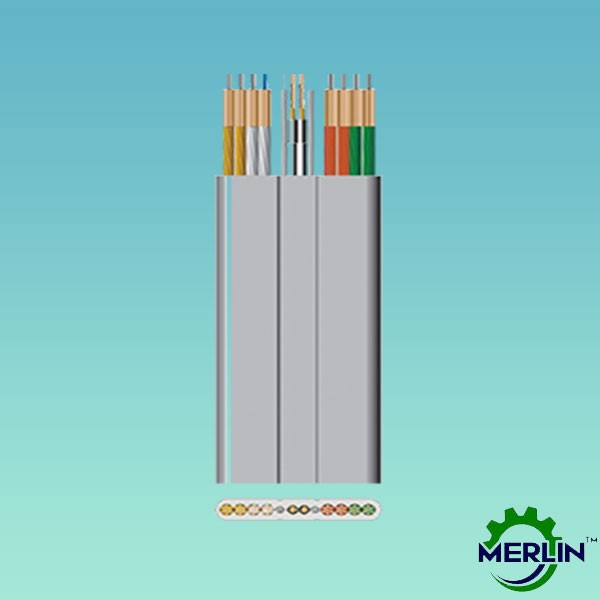

Travelling Cable 48 Core in Bangladesh

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"

Construction:

1.Conductor : Fine Stranded Bare Copper Wire (acc.to VDE0295 Class 5)
2.Insulation  : Special  PVC  (Polyvinyl Chloride)
3.Color Available: Yellow ,orange,white ,black,yellow and green black with white digital coding  or white  with black digital coding
4.Load-bearing material: High-strength galvanized steel wire rope(Optional)
5.Sheath: Special PVC (Polyvinyl Chloride) Flexible, cold-resistant, wear-resistant and oil-resistant
6.Color: Grey ,Black ,Orange ,Blue.

Standard:

IEC60227-6 ,EN50214,GB5023.6

Technical:

Rated Voltage:300V/500V (0.75mm2 to 1.0mm2)
                        450V/750V  (1.5mm2 to 2.5mm2)
Rated Temperature:-15°C to 70°C

1. Flat Traveling Cable  that inner core if parallel array, when the  suspension length more  35meters and the lift speed more 1.6m/s ,that should use load-bearing material :High-strength galvanized steel wire rope
2. Flat Traveling Cable  that inner core if Plum shape , when the  suspension length more 75meters and the lift speed more  4m/s,that should use load-bearing material :High-strength galvanized steel wire rope.

Application:

The Outer sheath use special PVC materials that will be cold-resistant, wear-resistant and oil-resistant can, when temperature at minus 15 degrees Celsius be the cable still kept soft and flexible  . Due to the cable's own weight and the required tension, the cable structure must be specially designed when it is used in large lengths suspension ,it need to add high strength Galvanized steel wire for long life.

Specification Parameter:
