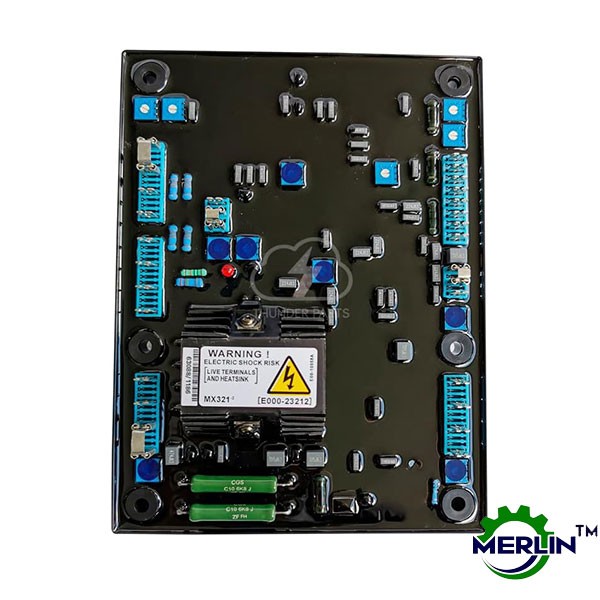

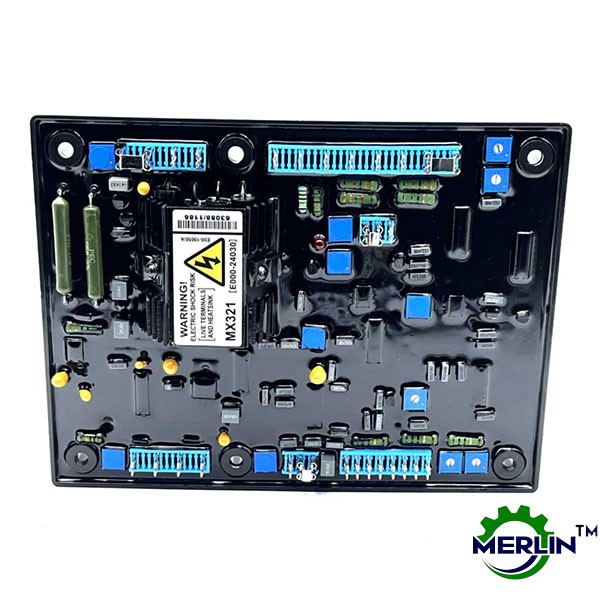

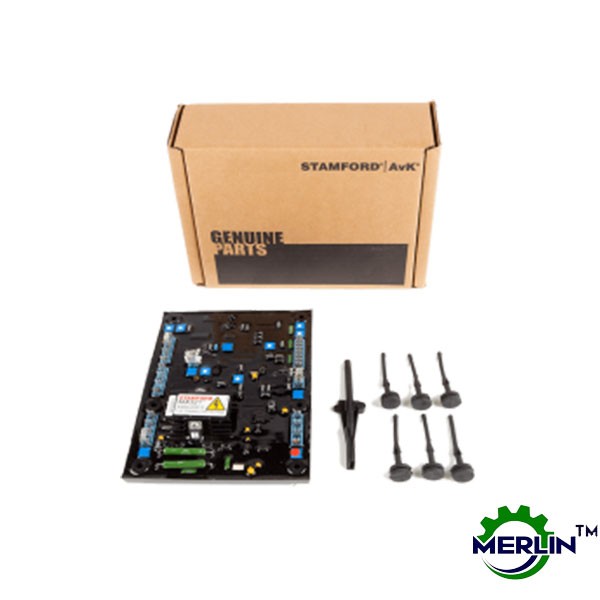

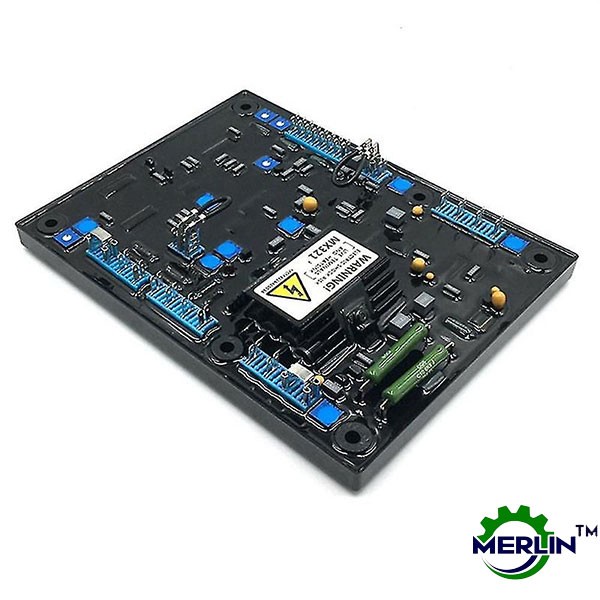

MX321 Automatic Voltage Regulator (AVR) | Stamford Generator Set Spare Parts

The STAMFORD MX321-2 is one of the most advanced regulators offered by STAMFORD, incorporating a wide range of features for precise voltage regulation and monitoring. The MX321 provides 3-phase sensing, a short circuit limiter, over-voltage adjustment, and DWELL, which is useful when the alternator is coupled to a turbocharged engine with limited block load acceptance. This regulator is commonly used and is standard on HC634, LV634, and P7 machines, with power ratings from 700 kW to 2200 kW. For enhanced configuration and regulation, an upgrade to the digital DM110 is available.| AvK dealer.

• Specification: Thunder Parts MX321 Automatic Voltage Regulator

  • Generic Replacement for: Cummins MX321
  • Voltage Range: 190 - 264V AC (maximum, 2 or 3 phase)
  • Frequency Range: 50 - 60 Hz nominal
  • Power Input (PMG) Voltage: 170 - 220V AC (maximum, 3 phase, 3 wire)
  • Output Voltage: Maximum 120V DC
  • Regulation Accuracy: ± 0.5% RMS with 4% engine governing
