630kg 8 Passenger Elevator!
For Quotation Please Contact:
Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516
E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"
Brand New and Fully Imported Product.
Product Specification:
1. GENERAL DATA | |
Brand | HAYASHIMU |
Type | Passenger Elevator |
Country of Origin | China |
Capacity & Person | 630 kg / 8 Persons |
Speed | 1.0 M/Sec |
No of floors/stops | 8 Floors / 8 Stops |
Service Floor Name | G Floor to 7th Floor |
Traction Motor | HAYASHIMU |
Control | Nice 3000+ (with HAYASHIMU Technology) |
Type of Control | AC-VVVF (Variable Voltage & Variable Frequency) |
Operation | Simplex, Full Collective Operation |
Door Motor Inverter | Monarch |
Conformity (Safety Code) | European safety code for lifts EN81.1 |
Type of Machine Room | Machine Room Lift |
Rope & Guide Rail Type | 2.5:1 |
Rope | 05 Wire |
Landing & Cabin Door Type | 2-Panel Center Opening (Automatic Operation) |
Ceiling Type | Standard |
Safety Device | Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear. |
Spare parts | Available from ready stock |
After Sales service | 01 (One) Year free service |
Warranty | 12 (Twelve) months |
2. SHAFT SPECIFICATION: | |
Shaft Size | 1850 mm (W)x 1750 mm (D) (Size will be changed as per site) |
Total Travel | Approx. 27.9 m (approx.) |
Pit Depth | 1500 mm |
Overhead | 4700 mm |
Machine Room Height | 2500 mm |
3. CAR SPECIFICATION: | |
Car Internal Dimension | 1400 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size |

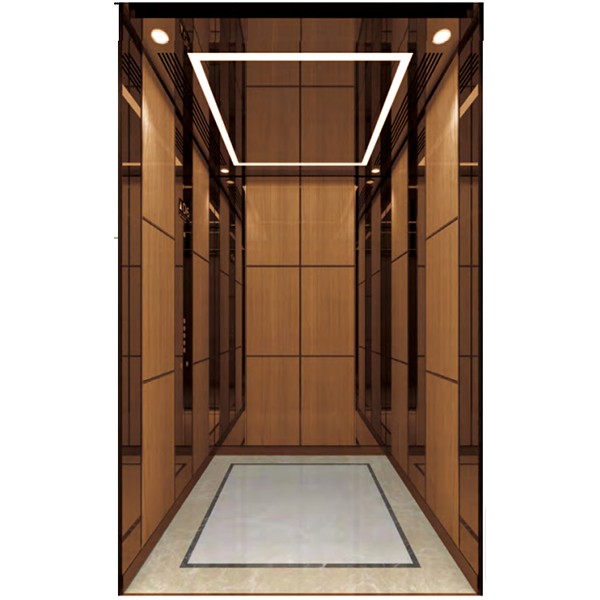

Car Design | Rose Gold Stainless Steel Mirror Etching Finish |
Car Wall (Front Wall) | Rose Gold Stainless Steel Mirror Etching Finish |
Car Wall (Side Wall) | Rose Gold Stainless Steel Mirror Etching Finish |
Car Wall (Real Wall) | Rose Gold Stainless Steel Mirror Etching Finish |
Car Ceiling | According to Design |
Car Floor | According to Design |
Handrail | According to Design (Round/Flat Type at Back Wall) |
Sheet Grade & Thickness | SUS 304 Grade & Thickness 1.2 mm |
Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.
Landing Door Decoration:
We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.
Elevate Your Building to New Heights with the HLC-22-94 630kg 8 Passenger Elevator
Elevators have become an indispensable part of modern buildings, offering a convenient and efficient way to navigate between floors. Whether you're a property developer, building owner, or architect, choosing the right elevator is crucial for enhancing accessibility, safety, and the overall aesthetics of your property. The HLC-2022-94 630kg 8 Passenger Elevator is a cutting-edge solution designed to meet these requirements. In this blog, we will delve into the features and benefits of this innovative elevator, designed to elevate your building in terms of functionality and style.
Impressive Capacity
The HLC-2022-94 elevator is notable for its substantial weight capacity, capable of comfortably accommodating up to 8 passengers or a maximum weight of 630 kilograms. This generous capacity makes it an excellent choice for medium to large-sized buildings, ensuring a comfortable and efficient ride while efficiently managing passenger traffic.
Safety First
Safety is a paramount concern when it comes to elevators, and the HLC-2022-94 takes safety to heart. Equipped with advanced safety features, it provides passengers with peace of mind during their vertical journey. Some of the safety features include:
- Emergency stop buttons for immediate halting in case of any issues.
- Overload protection to prevent exceeding the weight limit.
- Fire-rated landing doors for enhanced fire safety.
- Safety interlocks that ensure the doors open only when the elevator is at the designated floor.
The HLC-2022-94 elevator is designed for reliability, reducing the risk of breakdowns and the associated maintenance costs.
Cutting-Edge Technology
This elevator incorporates state-of-the-art technology to enhance its performance and energy efficiency. The control system ensures smooth and precise stops, reducing wear and tear on elevator components. The elevator is equipped with LED lighting and a digital floor display, adding a touch of modernity to your building's interior, enhancing its overall appeal and making a lasting impression on both occupants and visitors.
Customization Options
Every building is unique, and the HLC-2022-94 elevator offers extensive customization options to ensure it aligns with your specific requirements. You can choose cabin finishes, materials, and color schemes to match your building's aesthetics, allowing for a seamless integration with the overall design and style of your property.
Energy Efficiency
In today's environmentally conscious world, energy efficiency is a crucial consideration. The HLC-2022-94 elevator is designed to reduce your building's energy consumption, making it a cost-effective and eco-friendly choice. Its efficient motor and lighting systems not only lower energy usage but also result in operational cost savings and a reduced carbon footprint.
Low Maintenance
Proper maintenance is essential for elevator performance and longevity. The HLC-2022-94 elevator is constructed with high-quality materials and components, reducing the need for frequent maintenance and repairs. Accessible service panels and diagnostic tools simplify maintenance procedures, ensuring the elevator operates smoothly for many years to come.
Conclusion
The HLC-2022-94 630kg 8 Passenger Elevator is an excellent choice for those looking to enhance accessibility, safety, and style in their buildings. With its impressive capacity, advanced safety features, cutting-edge technology, customization options, energy efficiency, and low maintenance requirements, this elevator is a reliable and cost-effective solution. Elevate your building with the HLC-2022-94 and experience a new level of vertical transportation, creating a safer, more efficient, and more stylish environment for your occupants and visitors.
