450kg 6 Passenger Elevator!
For Quotation Please Contact:
Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516
E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"
Brand New and Fully Imported Product.
Product Specification:
1. GENERAL DATA | |
Brand | HAYASHIMU |
Type | Passenger Elevator |
Country of Origin | China |
Capacity & Person | 450 kg / 6 Persons |
Speed | 1.0 M/Sec |
No of floors/stops | 8 Floors / 8 Stops |
Service Floor Name | G Floor to 7th Floor |
Traction Motor | HAYASHIMU |
Control | Nice 3000+ (with HAYASHIMU Technology) |
Type of Control | AC-VVVF (Variable Voltage & Variable Frequency) |
Operation | Simplex, Full Collective Operation |
Door Motor Inverter | Monarch |
Conformity (Safety Code) | European safety code for lifts EN81.1 |
Type of Machine Room | Machine Room Lift |
Rope & Guide Rail Type | 2.5:1 |
Rope | 05 Wire |
Landing & Cabin Door Type | 2-Panel Center Opening (Automatic Operation) |
Ceiling Type | Standard |
Safety Device | Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear. |
Spare parts | Available from ready stock |
After Sales service | 01 (One) Year free service |
Warranty | 12 (Twelve) months |
2. SHAFT SPECIFICATION: | |
Shaft Size | 1650 mm (W)x 1750 mm (D) (Size will be changed as per site) |
Total Travel | Approx. 27.9 m (approx.) |
Pit Depth | 1500 mm |
Overhead | 4700 mm |
Machine Room Height | 2500 mm |
3. CAR SPECIFICATION: | |

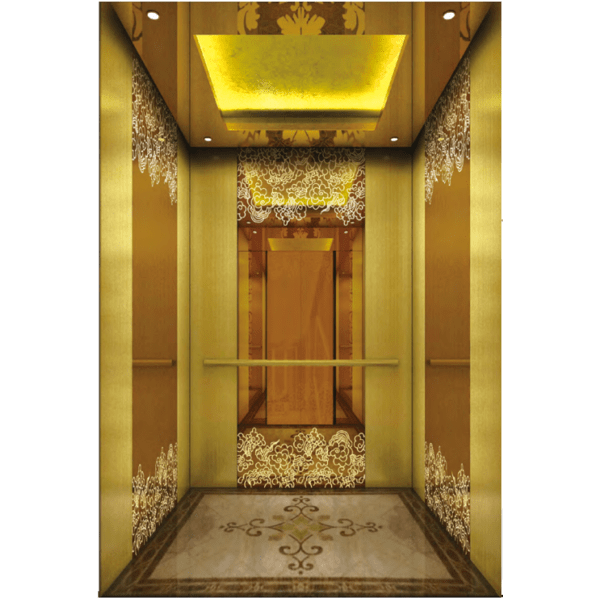

Car Internal Dimension | 1150 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size |
Car Design | Hairline Titanium Stainless Steel Mirror Etching Finish |
Car Wall (Front Wall) | Hairline Titanium Stainless Steel Mirror Etching Finish |
Car Wall (Side Wall) | Hairline Titanium Stainless Steel Mirror Etching Finish |
Car Wall (Real Wall) | Hairline Titanium Stainless Steel Mirror Etching Finish |
Car Ceiling | According to Design |
Car Floor | According to Design |
Handrail | According to Design (Round/Flat Type at Back Wall) |
Sheet Grade & Thickness | SUS 304 Grade & Thickness 1.2 mm |
Note: This pattern can also be processed into natural color, concave gold, rose gold, Champagne gold, black titanium.
Landing Door Decoration:
We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.
Elevate Your Building with the HLC-22-89 450kg 6 Passenger Elevator
Elevators have transformed the way we move within modern buildings, enhancing accessibility and convenience. If you're a property developer, building owner, or architect, you understand the importance of selecting the right elevator for your property. The HLC-2022-89 450kg 6 Passenger Elevator is a remarkable solution designed to meet these needs. In this blog, we'll explore the key features and benefits of this innovative elevator, designed to elevate your building in terms of both form and function.
Efficient Use of Space
The HLC-2022-89 elevator is designed for maximum efficiency. With a weight capacity of 450 kilograms and the ability to comfortably transport up to six passengers, it's an ideal choice for small to medium-sized buildings. The compact design ensures that it can fit into tight spaces while providing a comfortable and efficient ride.
Safety First
Safety is a paramount concern when it comes to elevators, and the HLC-2022-89 excels in this regard. Equipped with advanced safety features, it provides passengers with peace of mind during their vertical journey. Some of the safety features include:
- Emergency stop buttons for immediate halting in case of any issues.
- Overload protection to prevent exceeding the weight limit.
- Fire-rated landing doors for enhanced fire safety.
- Safety interlocks that ensure the doors open only when the elevator is at the designated floor.
The HLC-2022-89 elevator is designed with reliability and safety in mind, reducing the likelihood of breakdowns and the associated maintenance costs.
Modern Technology
This elevator incorporates cutting-edge technology to enhance its performance and energy efficiency. The control system ensures smooth and precise stops, reducing wear and tear on elevator components. The elevator is equipped with LED lighting and a digital floor display to add a modern touch to your building's interior, enhancing its overall appeal and leaving a lasting impression on both occupants and visitors.
Customization Options
Every building has its unique characteristics, and the HLC-2022-89 elevator offers a range of customization options to ensure it aligns with your specific requirements. You can choose cabin finishes, materials, and color schemes that match your building's aesthetics, allowing for a seamless integration with the overall design and style of your property.
Energy Efficiency
In today's eco-conscious world, energy efficiency is a critical consideration. The HLC-2022-89 elevator is designed to reduce your building's energy consumption, making it a cost-effective and eco-friendly choice. Its efficient motor and lighting systems not only lower energy usage but also result in operational cost savings and a reduced carbon footprint.
Low Maintenance
Proper maintenance is crucial for elevator performance and longevity. The HLC-2022-89 elevator is constructed with high-quality materials and components, reducing the need for frequent maintenance and repairs. Accessible service panels and diagnostic tools simplify maintenance procedures, ensuring the elevator operates smoothly for many years to come.
Conclusion
The HLC-2022-89 450kg 6 Passenger Elevator is an excellent choice for those seeking to enhance accessibility, safety, and style in their buildings. With its efficient use of space, advanced safety features, cutting-edge technology, customization options, energy efficiency, and low maintenance requirements, this elevator is a reliable and cost-effective solution. Elevate your building with the HLC-2022-89 and experience a new level of vertical transportation, creating a safer, more efficient, and more stylish environment for your occupants and visitors.
