HLC-22-88 Passenger Elevator
EMI Available
Model: HLC-22-88
Brand: HAYASHIMU
0.00 0.00

1000kg 13 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

1000 kg / 13 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

2050 mm (W)x 2050 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm

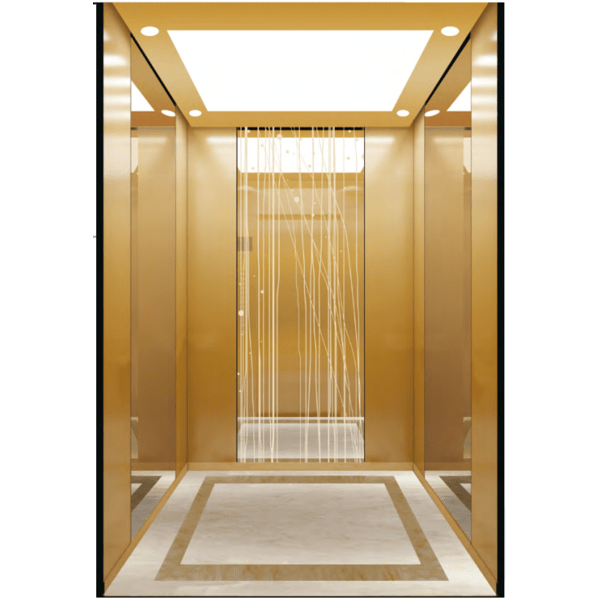

3. CAR SPECIFICATION:

Car Internal Dimension

1600 mm (W) x 1400 mm (D) x 2500mm (H) as per shaft size

Car Design

Hairline Titanium Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Hairline Titanium Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Hairline Titanium Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Hairline Titanium Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, rose gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.





Soaring to New Heights with the HLC-2022-88 1000kg 13 Passenger Elevator

Elevators have transformed the way we navigate within our modern buildings, making access to different floors convenient and efficient. If you're a property developer, building owner, or an architect, you know that selecting the right elevator is a crucial decision for enhancing accessibility, efficiency, and the overall aesthetics of your property. The HLC-2022-88 1000kg 13 Passenger Elevator is a game-changing solution designed to meet these demands. In this blog, we'll explore the key features and benefits of this cutting-edge elevator, designed to elevate your building in every sense.

    Exceptional Capacity

      The HLC-2022-88 elevator shines with its remarkable weight capacity, capable of accommodating up to 13 passengers or a maximum weight of 1000 kilograms. This makes it an ideal choice for larger buildings, providing a comfortable and efficient vertical transportation solution while handling significant passenger traffic.

        Safety First

          Safety is a top priority when it comes to elevators, and the HLC-2022-88 excels in this aspect. Equipped with advanced safety features, it provides passengers with peace of mind during their vertical journey. Key safety features include:

          • Emergency stop buttons for immediate halting in case of any issues.
          • Overload protection to prevent exceeding the weight limit.
          • Fire-rated landing doors for enhanced fire safety.
          • Safety interlocks that ensure the doors open only when the elevator is at the designated floor.

          The HLC-2022-88 elevator is designed with reliability and safety in mind, minimizing breakdowns and the associated maintenance costs.

            Cutting-Edge Technology

              This elevator incorporates state-of-the-art technology to enhance its performance and energy efficiency. The control system ensures smooth and precise stops, reducing wear and tear on elevator components. LED lighting and a digital floor display contribute to a modern and stylish aesthetic, enhancing the overall appeal of your building and leaving a lasting impression on both occupants and visitors.

                Customization Options

                  Every building is unique, and the HLC-2022-88 elevator offers extensive customization options to ensure it aligns with your specific requirements. You can choose cabin finishes, materials, and color schemes to match your building's aesthetics, ensuring a seamless integration with the overall design and style of your property.

                    Energy Efficiency

                      In today's environmentally conscious world, energy efficiency is a critical consideration. The HLC-2022-88 elevator is designed to reduce your building's energy consumption, making it a cost-effective and eco-friendly choice. Its efficient motor and lighting systems not only lower energy usage but also result in operational cost savings and a reduced carbon footprint.

                        Low Maintenance

                          Proper maintenance is vital for elevator performance and longevity. The HLC-2022-88 elevator is constructed with high-quality materials and components, reducing the need for frequent maintenance and repairs. Accessible service panels and diagnostic tools simplify maintenance procedures, ensuring the elevator operates smoothly for many years to come.

                          Conclusion

                          The HLC-2022-88 1000kg 13 Passenger Elevator is an excellent choice for those looking to enhance accessibility, safety, and style in their buildings. With its exceptional capacity, advanced safety features, cutting-edge technology, customization options, energy efficiency, and low maintenance requirements, this elevator is a reliable and cost-effective solution. Elevate your building with the HLC-2022-88 and experience a new level of vertical transportation, creating a safer, more efficient, and more stylish environment for your occupants and guests.
