HLC-22-83 Passenger Elevator
EMI Available
Model: HLC-22-83
Brand: HAYASHIMU
0.00 0.00

800kg 10 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

800 kg / 10 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1960 mm (W)x 2000 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

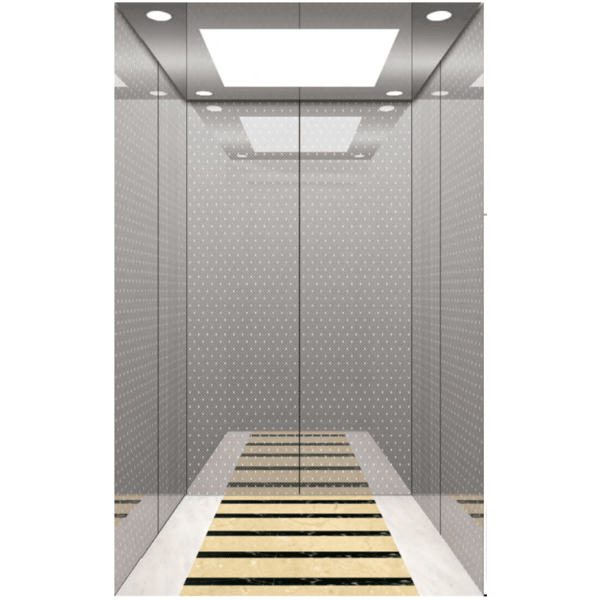

Car Internal Dimension

1400 mm (W) x 1350 mm (D) x 2500mm (H) as per shaft size

Car Design

Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into titanium gold, concave gold, rose gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate with Confidence: The HLC-22-83 800kg 10 Passenger Elevator

In the world of vertical transportation, elevators play a pivotal role in modern buildings. Whether you're a property developer, building owner, or architect, selecting the right elevator is crucial for enhancing both accessibility and convenience. Enter the HLC-22-83 800kg 10 Passenger Elevator, a remarkable solution designed to elevate your building in more ways than one. In this blog, we'll delve into the features and benefits of this cutting-edge elevator, designed to meet the demands of larger buildings and transport needs.

    Impressive Capacity

      The HLC-2022-83 elevator boasts an impressive weight capacity, accommodating up to 800 kilograms or 10 passengers comfortably. This expanded capacity makes it a prime choice for buildings with heavier traffic or those seeking to transport larger groups of people without compromising on space or comfort.

        Safety is Paramount

          Safety remains a top priority when it comes to elevators, and the HLC-22-83 rises to the occasion. Equipped with advanced safety features, it provides passengers with a sense of security during their vertical journey. Key safety elements include:

          • Emergency stop buttons, ensuring immediate halting in case of any issues.
          • Overload protection to prevent exceeding the weight limit.
          • Fire-rated landing doors to enhance fire safety.
          • Safety interlocks that ensure the doors open only when the elevator is at the designated floor.

          The HLC-22-83 elevator is built with reliability in mind, minimizing breakdowns and the associated inconvenience and maintenance costs.

            Cutting-Edge Technology

              This elevator incorporates state-of-the-art technology to enhance performance and energy efficiency. Its control system guarantees smooth and precise stops, thereby reducing wear and tear on elevator components. Moreover, the LED lighting and digital floor display contribute to a modern, stylish aesthetic, leaving a lasting impression on both occupants and visitors.

                Customization at Its Best

                  Every building is unique, and the HLC-22-83 allows for maximum customization. You have the freedom to select cabin finishes, materials, and color schemes that match your building's aesthetics. This level of customization ensures that your elevator seamlessly integrates with the overall design and style of your property.

                    Energy Efficiency

                      In today's eco-conscious world, energy efficiency is a critical consideration. The HLC-2022-83 elevator is designed to help reduce your building's carbon footprint. Its efficient motor and lighting systems not only lower energy consumption but also make it a cost-effective and eco-friendly choice, saving on operational costs in the long run.

                        Low Maintenance

                          Elevator maintenance is a necessity, and the HLC-22-83 elevator is constructed with quality materials and components, minimizing the need for frequent service and repairs. Accessible service panels and diagnostic tools further simplify maintenance procedures, ensuring the elevator operates smoothly for many years to come.

                          Conclusion

                          The HLC-22-83 800kg 10 Passenger Elevator is a top-tier choice for those seeking to enhance the accessibility, style, and value of their buildings. With its impressive capacity, advanced safety features, cutting-edge technology, customization options, energy efficiency, and low maintenance requirements, this elevator is a reliable and cost-effective solution. Elevate your building with the HLC-22-83 and experience a new level of vertical transportation, creating a safer, more efficient, and more impressive environment for your occupants and guests.
