1000kg 13 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"

Complete Imported & Brand New Product.

Product Specification:

1. GENERAL DATA
Brand	HAYASHIMU
Type	Passenger Elevator
Country of Origin	China
Capacity & Person	1000 kg / 13 Persons
Speed	1.0 M/Sec
No of floors/stops	8 Floors / 8 Stops
Service Floor Name	G Floor to 7th Floor
Traction Motor	HAYASHIMU
Control	Nice 3000+ (with HAYASHIMU Technology)
Type of Control	AC-VVVF (Variable Voltage & Variable Frequency)
Operation	Simplex, Full Collective Operation
Door Motor Inverter	Monarch
Conformity (Safety Code)	European safety code for lifts EN81.1
Type of Machine Room	Machine Room Lift
Rope & Guide Rail Type	2.5:1
Rope	05 Wire
Landing & Cabin Door Type	2-Panel Center Opening (Automatic Operation)
Ceiling Type	Standard
Safety Device	Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.
Spare parts	Available from ready stock
After Sales service	01 (One) Year free service
Warranty	12 (Twelve) months



2. SHAFT SPECIFICATION:
Shaft Size	2050 mm (W)x 2050 mm (D) (Size will be changed as per site)
Total Travel	Approx. 27.9 m (approx.)
Pit Depth	1500 mm
Overhead	4700 mm
Machine Room Height	2500 mm

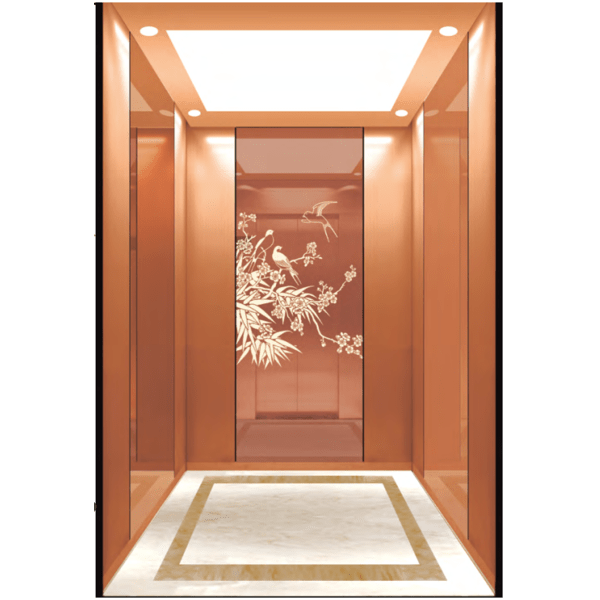

3. CAR SPECIFICATION:
Car Internal Dimension	1600 mm (W) x 1400 mm (D) x 2500mm (H) as per shaft size
Car Design	Rose Gold Stainless Steel Mirror Etching Finish
Car Wall (Front Wall)	Rose Gold Stainless Steel Mirror Etching Finish
Car Wall (Side Wall)	Rose Gold Stainless Steel Mirror Etching Finish
Car Wall (Real Wall)	Rose Gold Stainless Steel Mirror Etching Finish
Car Ceiling	According to Design
Car Floor	According to Design
Handrail	According to Design (Round/Flat Type at Back Wall)
Sheet Grade & Thickness	SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.

Elevators have become a symbol of convenience and modernity in our rapidly urbanizing world. The 1000kg 13 Passenger Elevator is a prime example of how technology and design have combined to create a spacious and efficient mode of vertical transportation. In this blog, we'll delve into the features and benefits of this impressive elevator and how it can transform your building's vertical mobility.

Impressive Capacity:

The 1000kg 13 Passenger Elevator is designed to carry up to 13 passengers or a whopping 1000 kilograms of weight. This impressive capacity makes it ideal for a wide range of settings, including commercial, residential, and mixed-use buildings. Whether you're moving large groups or heavy cargo, this elevator has the strength and space to accommodate your needs.

Efficiency and Speed:

One of the most remarkable features of this elevator is its efficiency and speed. Equipped with a powerful motor and advanced control systems, it offers swift and smooth travel between floors. Reduced wait times and quick transitions enhance the overall experience for passengers.

Safety at the Forefront:

Safety is of paramount importance when it comes to elevators, and the 1000kg 13 Passenger Elevator is designed with this in mind. It boasts a variety of safety features, including emergency brakes, fire-resistant materials, and automatic rescue devices, ensuring passengers feel secure during every ride.

Customization and Aesthetics:

Recognizing that no two buildings are the same, this elevator offers a wide range of customization options. From cabin interiors to lighting and finishes, you can tailor the elevator's aesthetics to match your building's style and ambiance. It's not just a means of transportation; it's an extension of your building's character.

Sustainability:

In a world increasingly focused on sustainability, this elevator is designed to be eco-friendly. Energy-efficient components and systems minimize power consumption, reducing the elevator's environmental impact. By choosing this eco-conscious option, you not only enhance your building's functionality but also contribute to a greener future.

Enhancing Property Value:

Installing a 1000kg 13 Passenger Elevator can significantly boost your property's value. Prospective tenants or buyers are often willing to pay a premium for the convenience, spaciousness, and luxury that this elevator offers. It's a strategic investment that can elevate your property's market appeal.

Conclusion:

The 1000kg 13 Passenger Elevator is not just an elevator; it's a testament to progress, efficiency, and style. Whether you're a business owner looking to impress clients or a homeowner seeking to enhance the living experience in your building, this elevator is the ideal solution. Elevate your space, your property value, and the overall experience with the 1000kg 13 Passenger Elevator. It's time to go up in style!
