HLC-22-63 Passenger Elevator
EMI Available
Model: HLC-22-63
Brand: HAYASHIMU
0.00 0.00

800kg 10 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"


Product Specification:

Complete Imported & Brand New Product.

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

800 kg / 10 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months

2. SHAFT SPECIFICATION:

Shaft Size

1960 mm (W)x 2000 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm

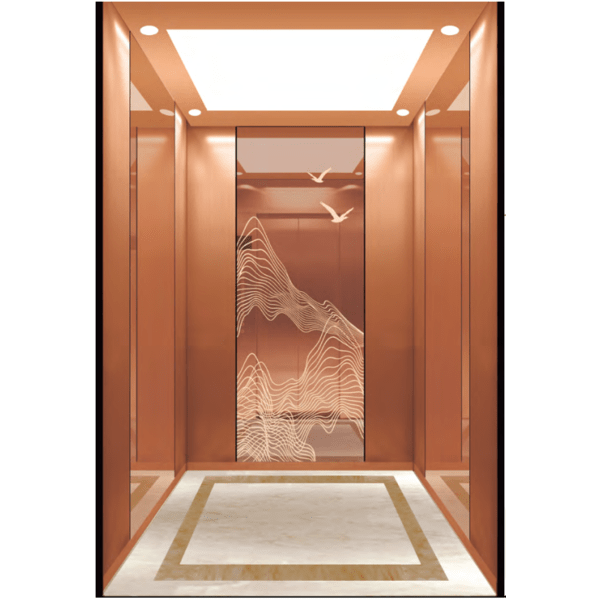

3. CAR SPECIFICATION:

Car Internal Dimension

1400 mm (W) x 1350 mm (D) x 2500mm (H) as per shaft size

Car Design

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.


Landing Door Decoration:


Elevators have become an indispensable part of our lives, transforming the way we move within buildings. The 800kg 10 Passenger Elevator represents a remarkable leap in elevator technology, offering a perfect blend of capacity, safety, and convenience. In this blog, we'll explore the features and benefits of this innovative vertical transport solution.

Capacity and Versatility:

The 800kg 10 Passenger Elevator, as the name suggests, is designed to accommodate up to 10 passengers or 800 kilograms of weight. This ample capacity makes it an excellent choice for a wide range of buildings, including offices, residential complexes, hotels, and more. Whether you're moving people or heavy loads, this elevator can handle it all with ease.

Efficiency and Speed:

One of the standout features of this elevator is its exceptional speed and efficiency. Equipped with a powerful motor and advanced control systems, it ensures swift and smooth travel between floors. Reduced waiting times and quick transitions make it an ideal choice for busy commercial buildings.

Safety First:

Safety is paramount when it comes to elevators, and the 800kg 10 Passenger Elevator takes it seriously. With a range of safety features, including emergency stop buttons, fire-resistant materials, and automatic rescue devices, passengers can ride with confidence, knowing they are protected in any situation.

Customization and Style:

No two buildings are the same, and the 800kg 10 Passenger Elevator recognizes that. It offers a wide array of customization options, from cabin interiors to lighting, allowing you to tailor the elevator to your specific needs and aesthetic preferences. Create an elevator that seamlessly blends with your building's design and ambiance.

Sustainability:

In today's environmentally conscious world, sustainability is a top priority. This elevator is designed with energy-efficient components and systems to reduce power consumption. By choosing this eco-friendly option, you not only improve your building's functionality but also reduce its carbon footprint.

Enhancing Property Value:

Installing an 800kg 10 Passenger Elevator can significantly increase the value of your property. Prospective tenants or buyers often seek the convenience and luxury that this elevator provides, making it a wise investment for property owners.

Conclusion:

The 800kg 10 Passenger Elevator is not just a mode of transportation; it's a symbol of progress, efficiency, and comfort. Elevate the experience of those using your building by providing a reliable and spacious vertical transport solution. Whether you're a business owner aiming to impress clients or a homeowner seeking to add a touch of luxury to your residence, this elevator offers the perfect solution. Elevate your space, your property value, and the overall experience with the 800kg 10 Passenger Elevator.
