630kg 8 Passenger Elevator!

Product Specification: Complete Imported & Brand New Product.

1. GENERAL DATA:

Brand	HAYASHIMU
Type	Passenger Elevator
Country of Origin	China
Capacity & Person	630 kg / 8 Persons
Speed	1.0 M/Sec
No of floors/stops	8 Floors / 8 Stops
Service Floor Name	G Floor to 7th Floor
Traction Motor	HAYASHIMU
Control	Nice 3000+ (with HAYASHIMU Technology)
Type of Control	AC-VVVF (Variable Voltage & Variable Frequency)
Operation	Simplex, Full Collective Operation
Door Motor Inverter	Monarch
Conformity (Safety Code)	European safety code for lifts EN81.1
Type of Machine Room	Machine Room Lift
Rope & Guide Rail Type	2.5:1
Rope	05 Wire
Landing & Cabin Door Type	2-Panel Center Opening (Automatic Operation)
Ceiling Type	Standard
Safety Device	Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.
Spare parts	Available from ready stock
After Sales service	01 (One) Year free service
Warranty	12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size	1850 mm (W)x 1750 mm (D) (Size will be changed as per site)
Total Travel	Approx. 27.9 m (approx.)
Pit Depth	1500 mm
Overhead	4700 mm
Machine Room Height	2500 mm

 3. CAR SPECIFICATION:

Car Internal Dimension	1400 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size
Car Design	Rose gold Stainless Steel Mirror Etching Finish
Car Wall (Front Wall)	Rose gold Stainless Steel Mirror Etching Finish
Car Wall (Side Wall)	Rose gold Stainless Steel Mirror Etching Finish
Car Wall (Real Wall)	Rose gold Stainless Steel Mirror Etching Finish
Car Ceiling	According to Design
Car Floor	According to Design
Handrail	According to Design (Round/Flat Type at Back Wall)
Sheet Grade & Thickness	SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

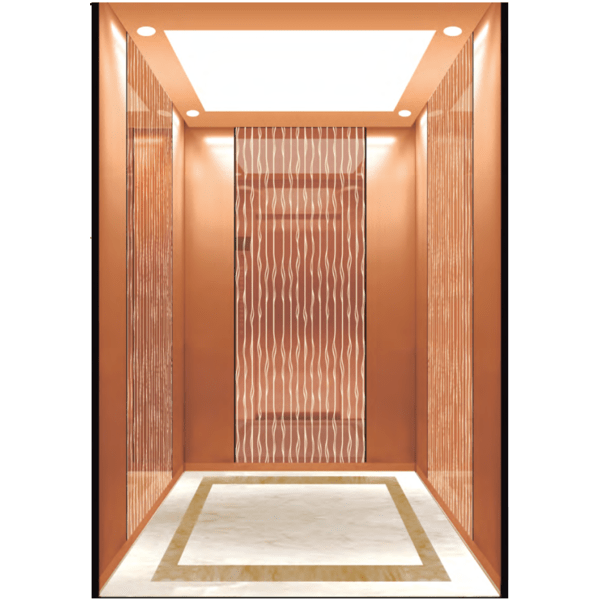

The HLC-22-60 Passenger Elevator cabin is a seamless blend of modern aesthetics and functional excellence. At its core, the center plate is a visual masterpiece, featuring a mirror finish adorned with intricate rose gold etching. This design adds a touch of opulence and sophistication to the cabin, ensuring that every elevator ride is a luxurious experience.

The auxiliary board is sleek and elegant with a hairline finish, providing a clean and contemporary look that complements the cabin's overall aesthetics.

One of the key features of the HLC-22-60 cabin is its versatility. This captivating pattern can be customized to align with your specific preferences and the architectural style of your building. You have the option to choose from a variety of stunning color finishes, including a natural color for a timeless and classic look, titanium gold for a regal touch, concave gold for added depth and allure, Champagne gold for a warm and inviting atmosphere, and black titanium for a sleek and modern finish. This high level of customization ensures that the elevator cabin seamlessly integrates with the style and atmosphere of your building, providing passengers with a journey that is not only visually striking but also functionally exceptional.

With the HLC-2022-60 cabin, every detail has been thoughtfully designed to leave a lasting impression of contemporary opulence and technological excellence. Elevate your vertical mobility experience to new heights with the HLC-22-60, where sophistication meets innovation in perfect harmony.
