1000kg 13 Passenger Elevator!
For Quotation Please Contact:
Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516
E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"
Product Specification:
Complete Imported & Brand New Product.
1. GENERAL DATA:
Brand | HAYASHIMU |
Type | Passenger Elevator |
Country of Origin | China |
Capacity & Person | 1000 kg / 13 Persons |
Speed | 1.0 M/Sec |
No of floors/stops | 8 Floors / 8 Stops |
Service Floor Name | G Floor to 7th Floor |
Traction Motor | HAYASHIMU |
Control | Nice 3000+ (with HAYASHIMU Technology) |
Type of Control | AC-VVVF (Variable Voltage & Variable Frequency) |
Operation | Simplex, Full Collective Operation |
Door Motor Inverter | Monarch |
Conformity (Safety Code) | European safety code for lifts EN81.1 |
Type of Machine Room | Machine Room Lift |
Rope & Guide Rail Type | 2.5:1 |
Rope | 05 Wire |
Landing & Cabin Door Type | 2-Panel Center Opening (Automatic Operation) |
Ceiling Type | Standard |
Safety Device | Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear. |
Spare parts | Available from ready stock |
After Sales service | 01 (One) Year free service |
Warranty | 12 (Twelve) months |
2. SHAFT SPECIFICATION:
Shaft Size | 2050 mm (W)x 2050 mm (D) (Size will be changed as per site) |
Total Travel | Approx. 27.9 m (approx.) |
Pit Depth | 1500 mm |
Overhead | 4700 mm |
Machine Room Height | 2500 mm |

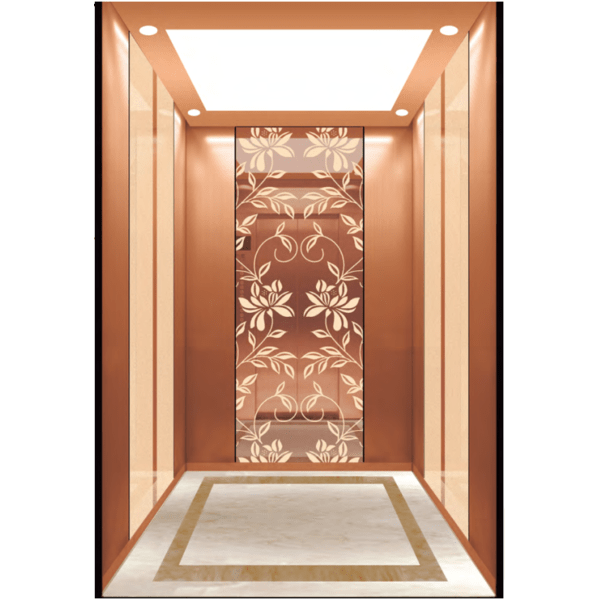

3. CAR SPECIFICATION:
Car Internal Dimension | 1600 mm (W) x 1400 mm (D) x 2500mm (H) as per shaft size |
Car Design | Rose gold Stainless Steel Mirror Etching Finish |
Car Wall (Front Wall) | Rose gold Stainless Steel Mirror Etching Finish |
Car Wall (Side Wall) | Rose gold Stainless Steel Mirror Etching Finish |
Car Wall (Real Wall) | Rose gold Stainless Steel Mirror Etching Finish |
Car Ceiling | According to Design |
Car Floor | According to Design |
Handrail | According to Design (Round/Flat Type at Back Wall) |
Sheet Grade & Thickness | SUS 304 Grade & Thickness 1.2 mm |
Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.
Landing Door Decoration:
