450kg 6 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"

Complete Imported & Brand New Product.

Product Specification:

1.GENERAL DATA:
Brand	HAYASHIMU
Type	Passenger Elevator
Country of Origin	China
Capacity & Person	450 kg / 6 Persons
Speed	1.0 M/Sec
No of floors/stops	8 Floors / 8 Stops
Service Floor Name	G Floor to 7th Floor
Traction Motor	HAYASHIMU
Control	Nice 3000+ (with HAYASHIMU Technology)
Type of Control	AC-VVVF (Variable Voltage & Variable Frequency)
Operation	Simplex, Full Collective Operation
Door Motor Inverter	Monarch
Conformity (Safety Code)	European safety code for lifts EN81.1
Type of Machine Room	Machine Room Lift
Rope & Guide Rail Type	2.5:1
Rope	05 Wire
Landing & Cabin Door Type	2-Panel Center Opening (Automatic Operation)
Ceiling Type	Standard
Safety Device	Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.
Spare parts	Available from ready stock
After Sales service	01 (One) Year free service
Warranty	12 (Twelve) months



2. SHAFT SPECIFICATION:
Shaft Size	1650 mm (W)x 1750 mm (D) (Size will be changed as per site)
Total Travel	Approx. 27.9 m (approx.)
Pit Depth	1500 mm
Overhead	4700 mm
Machine Room Height	2500 mm



3. CAR SPECIFICATION:
Car Internal Dimension	1150 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size
Car Design	Rose gold Stainless Steel Mirror Etching Finish
Car Wall (Front Wall)	Rose gold Stainless Steel Mirror Etching Finish
Car Wall (Side Wall)	Rose gold Stainless Steel Mirror Etching Finish
Car Wall (Real Wall)	Rose gold Stainless Steel Mirror Etching Finish
Car Ceiling	According to Design
Car Floor	According to Design
Handrail	According to Design (Round/Flat Type at Back Wall)
Sheet Grade & Thickness	SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

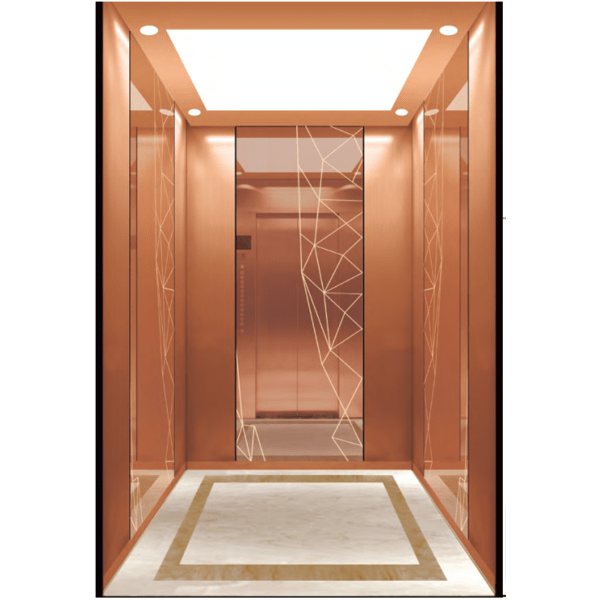

The HLC-22-53 Passenger Elevator cabin embodies the epitome of modern elegance and luxury. The center plate is a work of art, featuring a mirror finish adorned with intricate rose gold etching, creating an atmosphere of opulence and sophistication within the cabin. Complementing this exquisite centerpiece is the auxiliary board, meticulously finished in a matching hairline rose gold, enhancing the cabin's overall aesthetics.

Moreover, the HLC-22-53 cabin offers a remarkable level of customization, with the option to choose from a range of exquisite color finishes. Whether you prefer a natural color, the regal shimmer of titanium gold, the allure of concave gold, the warmth of Champagne gold, or the sleekness of black titanium, this elevator cabin allows you to tailor its appearance to seamlessly blend with the style and ambiance of your building. Elevate your passenger experience with the HLC-22-53 cabin, where every detail exudes sophistication and leaves a lasting impression of refined luxury.
