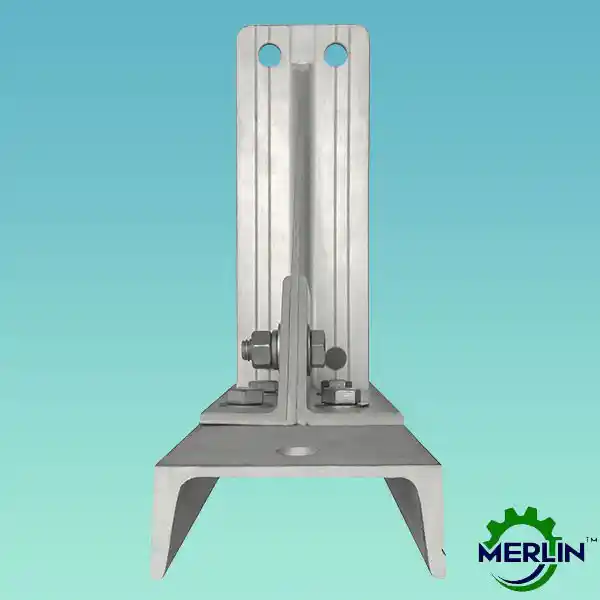

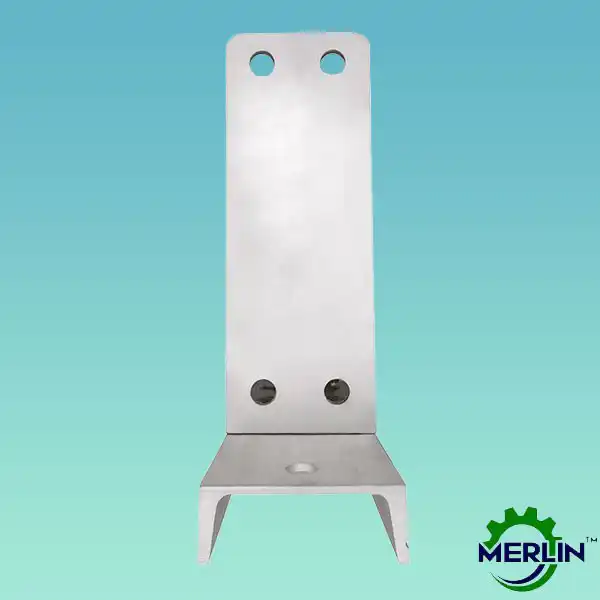

Enhance your dock or marina by integrating the Aluminum Lift Side Mount Bracket—a versatile solution designed to optimize space and elevate functionality. This innovative bracket allows for the efficient use of dock pilings between slips, ensuring a seamless docking experience.

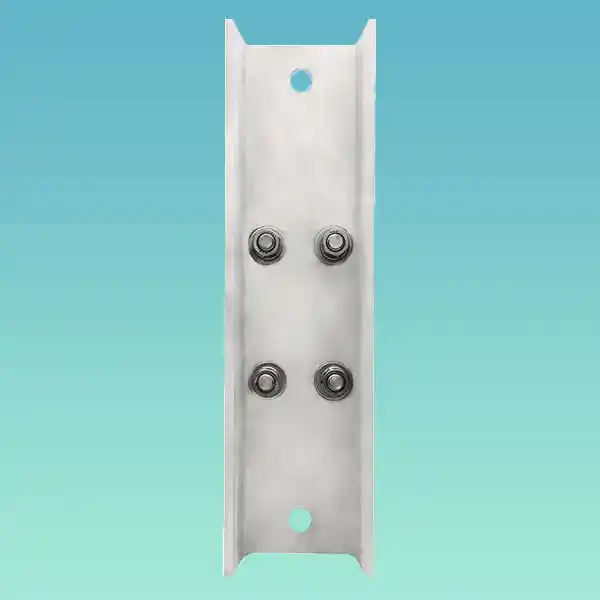

Effortless Installation: The Aluminum Lift Side Mount Bracket is engineered for easy installation. Mount the top beams close to the pilings for maximum space utilization. Featuring (2) mounting holes, one at the top and one at the bottom, securing the bracket is simple. It accepts 5/8-inch bolts for a secure connection.

Strategic Load Placement: Prioritizing safety and stability, the bracket places the load 5 1/2 inches from the channel face. This placement ensures a secure and balanced docking, minimizing accidents and providing peace of mind.

Options for Varied Needs: Tailor your choice between two bracket options to meet your specific requirements. The Standard bracket holds a 3,000 lb. load capacity, supporting a maximum weight of 6,000 lbs. with two brackets. For heavier loads, opt for the Heavy Duty bracket with a 5,000 lb. capacity, capable of accommodating 10,000 lbs. using two brackets. Both options ensure exceptional strength and reliability.

Durable Construction: Crafted from marine-grade 6061-T6 US aluminum, the Aluminum Lift Side Mount Bracket guarantees durability and corrosion resistance. This robust build ensures longevity, withstanding harsh marine environments for consistent performance over the years.

Stainless Steel Bracket Fasteners: Committed to safety, stainless steel bracket fasteners accompany each bracket, offering strength and corrosion resistance for a secure attachment and prolonged system life.

Galvanic Corrosion Prevention: Included PVC plastic insulators act as a barrier, preventing galvanic corrosion caused by contact between wood dock pilings and aluminum, extending the brackets' lifespan.

Versatile Specifications:

Options: Choose between Standard or Heavy Duty brackets based on load requirements. Dimensions: Both options measure 15 inches in length, 4 inches in width, and 12 1/2 inches in height, balancing strength and space efficiency. Piling Mount Holes: Equipped with 5/8-inch piling mount holes for easy installation. Load Capacity: Standard holds up to 3,000 lbs., Heavy Duty supports 5,000 lbs. Material: Crafted from premium 6061-T6 US aluminum for unmatched quality and durability. Mounting Bolts and Fasteners: Recommended (4) 1/2-inch 304 stainless steel bolts and (2) 5/8-inch GR5 bolts for optimal performance (not included).

Experience the convenience and efficiency of the Aluminum Lift Side Mount Bracket to elevate your dock or marina. Whether you're a boat owner or managing a marina, these brackets provide a reliable, space-saving solution to maximize docking potential. Invest in quality, durability, and functionality with our top-notch brackets for worry-free docking over the years.
