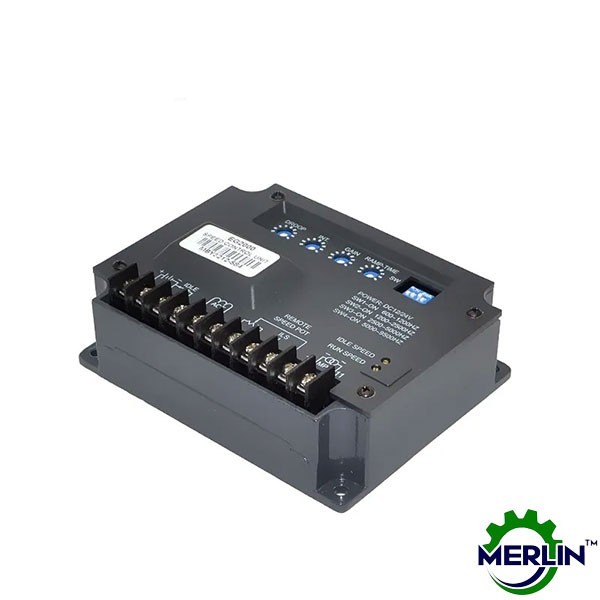

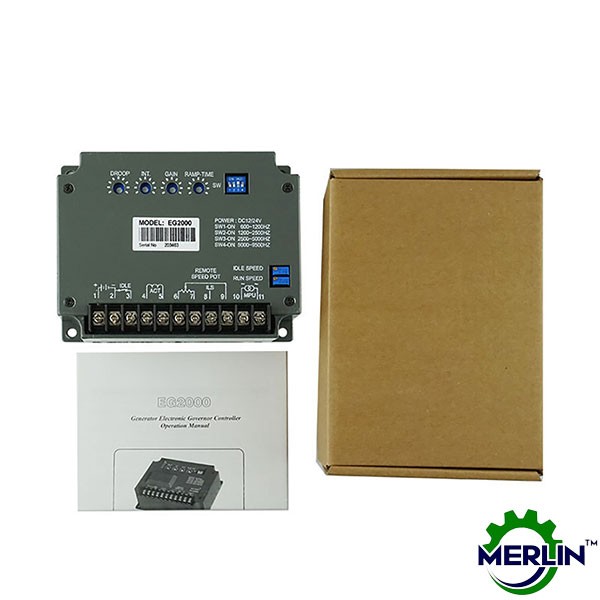

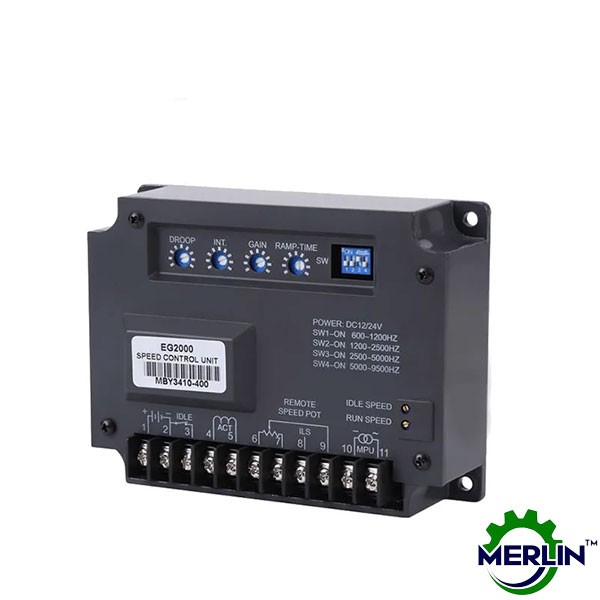

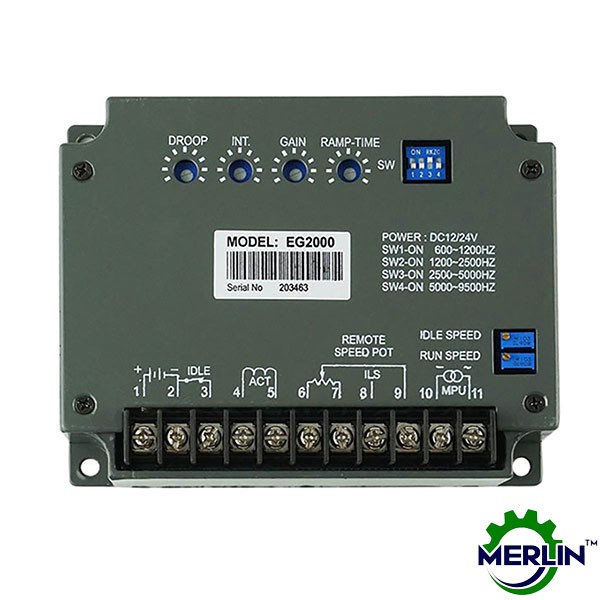

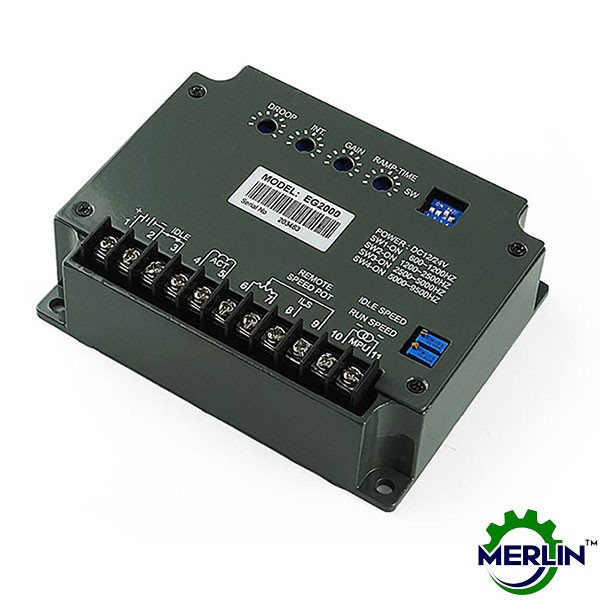

EG 2000 | Engine Speed Governor Controller!
Description
The EG2000 serves as a versatile generator governor and engine speed controller featuring Smoke Limiting & Idle Speed capabilities. It is compatible with diesel, gas, and natural gas engines, designed for use with both Built-in & Non-Built-in PTs Pumps. Additionally, it supports Low Current and Electric over Hydraulic Oil Pumps Type Governor Actuators.
SPECIFICATIONS
|
Operating
Voltage |
12 or 24
VDC ±20% |
|
Output
Current |
0.5 ~ 15 A |
|
Run Speed
Adjustment range |
Speed
adjustment Potentiometer (30 turn); 4 Segment Dip |
|
Idle Speed
Adjustment Range |
Run Speed
30 ~ 85% |
|
Ramp Time |
3 ~ 20 Sec |
|
Remote
Speed Pot |
Ext.
Remote speed pot terminal 6, 7, 8 (ILS) and 6, 7, 9 |
|
Temp.
Stability |
<0.01% |
|
Run Speed
Stability |
± 0.25 %
at steady state |
|
MPU input
signal |
1 ~ 120VAC
RMS |
|
Droop |
4.00% |
|
Adjustment |
Run Speed,
Idle Speed, Ramp Time, Droop, Integration, Gain |
|
Mechanical
Vibration |
1G @ 18 ~
30 Hz, 2.5G @ 48 ~ 70 Hz |
|
Relative
Humidity |
< 95% |
|
Operating
Temperature |
-40 ~ 85°C |
|
Storage
Temperature |
-40 ~ 85°C |
|
Dimensions |
147mm L *
114mm W * 50mm H |
|
Weight |
690g ± 2% |
