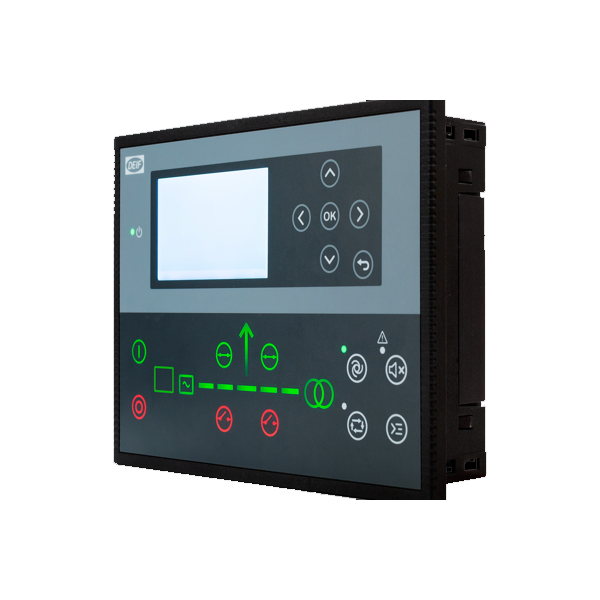

DEIF AGC 150 PMS Lite Generator Controller – Simple, Reliable Power Management for Off-Grid Plants

The DEIF AGC 150 PMS Lite is a power management controller designed for simple off-grid installations that use multiple generator sets. It controls and protects an individual genset and its generator breaker while communicating with other compatible AGC 150 PMS Lite controllers.

The controllers connect through a CAN bus network. They automatically detect one another and assign IDs, helping simplify system configuration. Operators can configure the plant directly from the controller display without using a PC or utility software.

During operation, the system starts and stops gensets according to power demand and assigned priorities. It also distributes the load among operating generators to support balanced power production.

With a wide operating temperature range, configurable inputs and outputs, and compatibility with various engine control units (ECUs), the AGC 150 PMS Lite offers a practical solution for demanding off-grid power applications.

Key Features

Supports Up to 254 Gensets: This system helps set up power management for big off-grid setups. It’s made for places where lots of generators need to work
Automatic Genset Coordination: The system turns generators on and off based on how much power's needed. It also follows which gensets should run based on priority.
Automatic Load Sharing: Power is shared evenly between the generators that are running. This keeps each one from working hard.
CAN Bus Communication: The controllers can find each other. Assign unique IDs without extra help. This makes setup easier and faster.
Configuration Without a PC: You can set up the power plant right from the controller’s screen. No computer needed.
Integrated Genset Protection: The system looks after the generator and its breaker. It stops damage from overloads or other problems.
Operating Temperature: It works in really cold and really hot places. The system runs fine from -40, °C to +70°C.

Why Choose the DEIF AGC 150 PMS Lite Generator Controller?

1. Manage Multiple Generators More Easily

Operating several gensets manually can take time and create unnecessary complexity. The AGC 150 PMS Lite coordinates connected generators through a common power management system.

The system supports up to 254 gensets, making it suitable for large off-grid plants that need coordinated generator operation.

2. Automate Generator Starting and Stopping

Power demand changes throughout the day. Running every generator continuously may waste fuel when demand is low, while too few generators may struggle to meet higher demand.

The AGC 150 PMS Lite starts and stops gensets according to the plant's load and configured priorities.

3. Support Balanced Load Sharing

When several generators operate together, they need to share the electrical load properly.

The AGC 150 PMS Lite coordinates load sharing among operating gensets. This helps distribute power demand and supports organised generator operation.

4. Configure the System Without a PC

Setting up a multi-generator system can require additional tools and engineering time.

With the AGC 150 PMS Lite, operators can configure the plant directly from the display without using a PC with utility software. Connected controllers also detect one another and assign IDs through CAN bus communication.

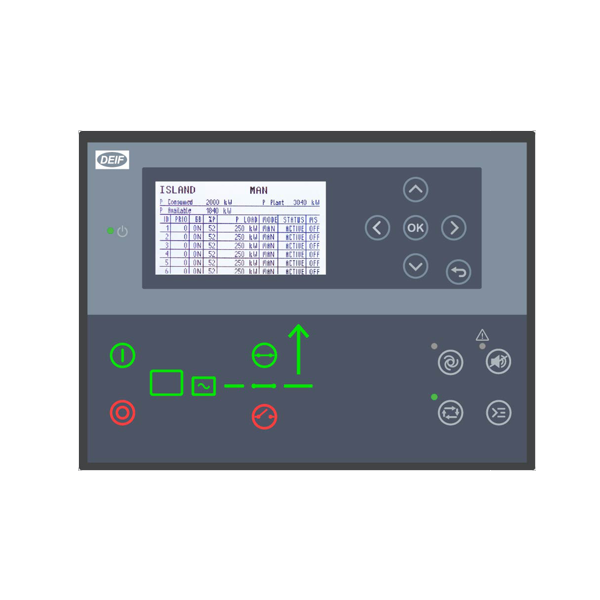

5. Monitor the Entire Plant from One Controller Display

It's Operators need a clear overview of the power system to make informed decisions. The AGC 150 PMS Lite provides information about total available power, consumed power, and the operating status of gensets across the plant.

Its graphical display is available in 11 languages, making system information easier to access for different operators.

Frequently Asked Questions (FAQ)

Q. What is the DEIF AGC 150 PMS Lite Generator Controller?

The DEIF AGC 150 PMS Lite is a generator controller designed for simple power management systems in off-grid plants. It controls and protects a genset and its breaker while coordinating operation with other compatible controllers.

Q. How many generators can the AGC 150 PMS Lite support?

The AGC 150 PMS Lite can support a power management system with up to 254 gensets. Each controller manages its associated genset and breaker within the connected system.

Q. Does the AGC 150 PMS Lite support automatic load sharing?

Yes. It coordinates load sharing among operating gensets to distribute the electrical load according to the system's power management configuration.

Q. Can I configure the AGC 150 PMS Lite without a computer?

Yes. Operators can configure the plant directly from the controller display without using a PC with utility software.

Q. What is the operating temperature range of the AGC 150 PMS Lite?

The controller operates across a temperature range of -40°C to +70°C, making it suitable for installations that face demanding temperature conditions.

Q. What does the IP65 rating mean?

The IP65 front protection rating indicates protection against dust and water jets at the front of the controller when it is installed correctly. It does not mean the entire unit can be submerged in water.

Q. Is the AGC 150 PMS Lite compatible with other AGC 150 controllers?

No. The AGC 150 PMS Lite is not compatible with other AGC 150 variants. Check the manufacturer's compatibility guidance before designing a system that includes other controllers.

Q. Can the AGC 150 PMS Lite monitor exhaust after-treatment systems?

Yes. The controller display supports monitoring and control of compatible exhaust after-treatment systems.

Q. Does the AGC 150 PMS Lite support Tier 4 Final and Stage V engines?

The controller meets Tier 4 Final/Stage V requirements and supports a wide range of ECUs and engines. Confirm compatibility with the specific engine and emissions system before installation.

The DEIF AGC 150 PMS Lite Generator Controller provides a practical solution for managing multiple gensets in off-grid power plants. Its automatic generator coordination, load sharing, CAN bus communication, and direct display-based configuration help simplify everyday power management.

With support for up to 254 gensets, an operating temperature range of -40°C to +70°C, IP65 front protection, and compatibility with a wide range of engines and ECUs, it offers useful features for demanding generator applications.

Choosing the correct controller and confirming compatibility with the complete power system remain essential for safe and reliable operation.
