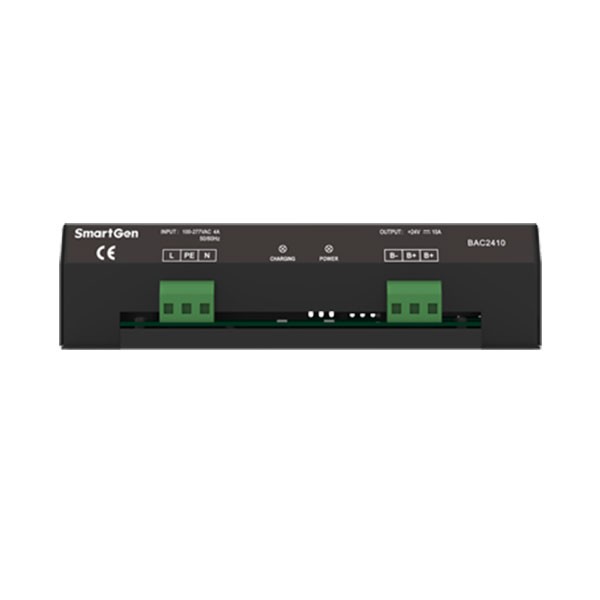

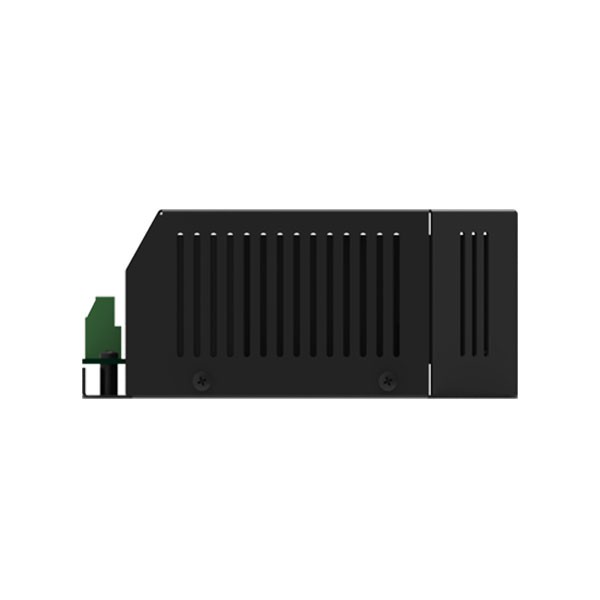

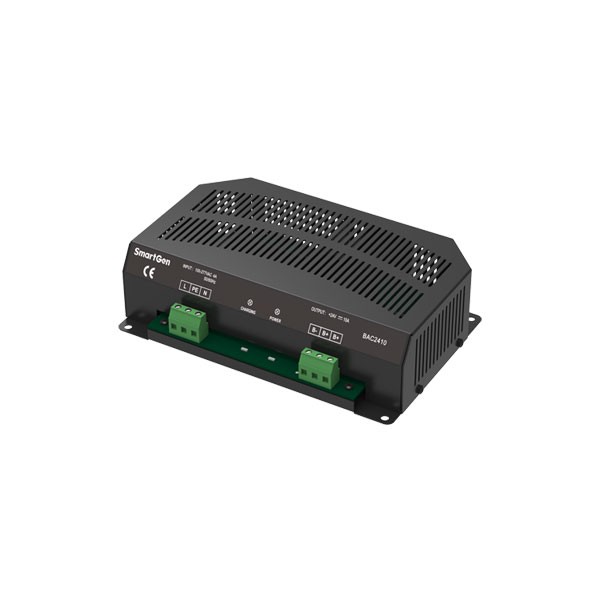

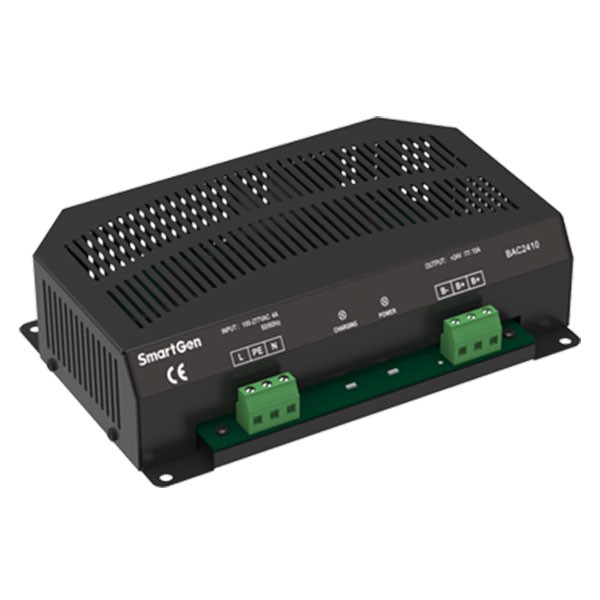

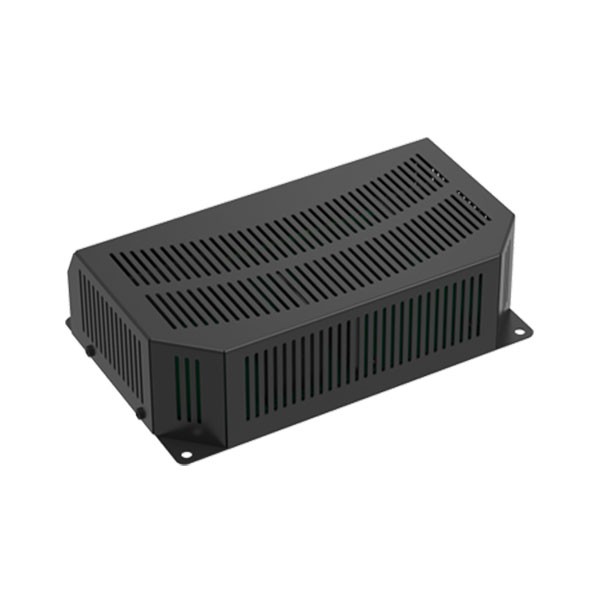

BAC2410 | Floating Charger | Two-Stage Charger!
Technical Parameters:
|
Battery Voltage |
24V |
|
Max. Charging Current |
10A |
|
Rated Input Voltage |
AC(100~277)V |
|
Max. Input Voltage Range |
AC(90~305)V |
|
AC Input Frequency |
(50/60)Hz |
|
No-Load Power Consumption |
<3W |
|
Power Factor Compensation |
● |
|
Operating Mode |
Two segments |
|
Maximum Efficiency |
88% |
|
Operating Temp. |
(-30~+55)℃ |
|
Storage Temp. |
(-40~+85)℃ |
|
Net Weight(kg) |
1.15 |
|
Case Dimensions(mm) |
205.5*131*55 |
Product Overview:
Designed to complement modern power supply systems, the
BAC2410 float charger is tailored to meet the charging characteristics of
lead-acid engine starter batteries. Ideal for the long-term float charging of
24V lead-acid batteries, this charger offers top-notch performance and key
features:
- Switch
Power Supply Structure: Compact and lightweight with a wide input
voltage range for enhanced efficiency.
- Automatic
Two-Stage Charging: Follows a dual-phase charging process, starting
with constant current and transitioning to constant voltage. This aligns
with battery charging characteristics, preventing overcharging and
extending battery lifespan.
- Built-in
PFC Circuit: Features a Power Factor Correction (PFC) circuit that
calibrates the power factor to above 0.99.
- Current
Protective Circuit: Equipped with a built-in protective circuit to
safeguard against overcurrent, short-circuits, or reverse connections.
Fast blinking of power or charge lamps serves as an alarm.
- Suitable
for 24V Batteries: Specifically designed for 24V storage batteries
with a rated current of 10A.
- LED
Display: Includes a Power indication (Green light) and Charging
indication (Red light) for easy monitoring.
Experience efficient, reliable, and protective charging with the BAC2410, ensuring prolonged battery life and optimal performance.
