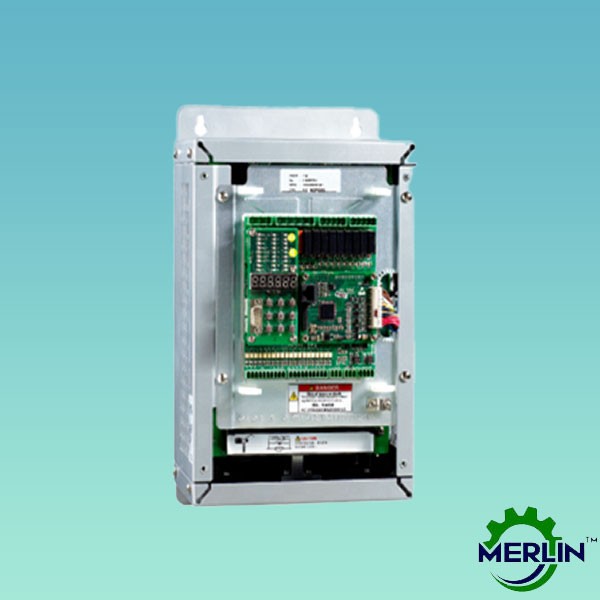

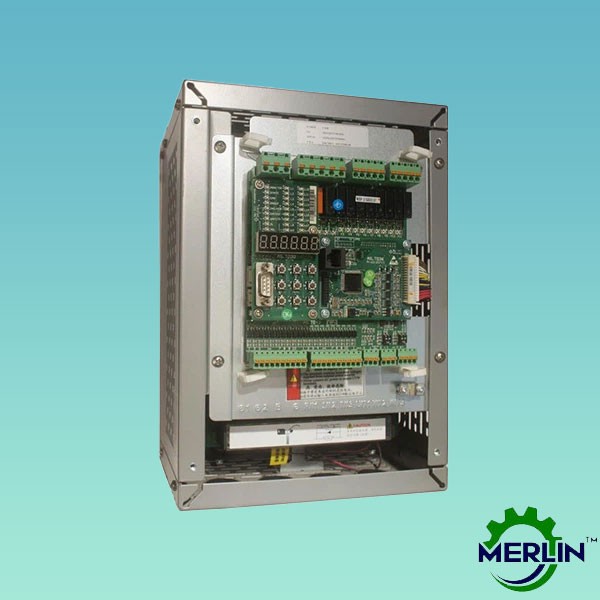

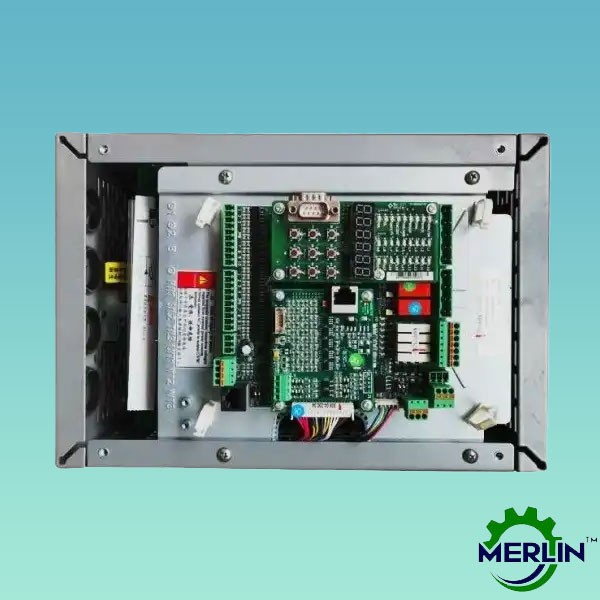

AS330 Series Elevator Inverter

EMI Available

Model: AS330

Brand: SHANGHAI STEP ELECTRIC CORPORATION

0.00 0.00

Enhanced performance with a closed-loop vector controller.
Reduced energy loss through innovative PWM dead-zone compensation technology.
Minimized motor noise achieved by dynamic PWM carrier modulation technology.
Integrated drive and controller with a smart running speed controller for energy-efficient escalator operation.
Dual 32-bit embedded microprocessors for optimized functionality.
Incorporation of bypass frequency conversion technology.
Redundancy control for both frequency conversion and power frequency, ensuring reliability and consistent operation.

Model		4T05P5	4T07P5	4T0011	4T0015	4T0018	4T0022	4T0030	4T0037
Max applicable motor capacity (kW)		5.5	7.5	11	15	15.5	22	30	37
Rated output	Rated capacity (kVA)	5.5	14	18	24	29	34	50	61
	Rated current (A)	13	18	27	34	41	48	65	80
	Max voltage output (V)	400V-class: 3-phase, 380/400/415/440/460V, (Corresponding to the input voltage)
Input Power	Phase, voltage, frequency	400V-class: 3-phase, 380/400/415/440/460V, 50-60Hz
	Allowed fluctuation in voltage	-15%~+10%
	Allowed fluctuation in frequency	5%~+5%
	Instantaneous voltage drop	400V-class: keep running when the voltage is above AC300V; Under-voltage protection is available in 15ms when the voltage is below AC 300V;
