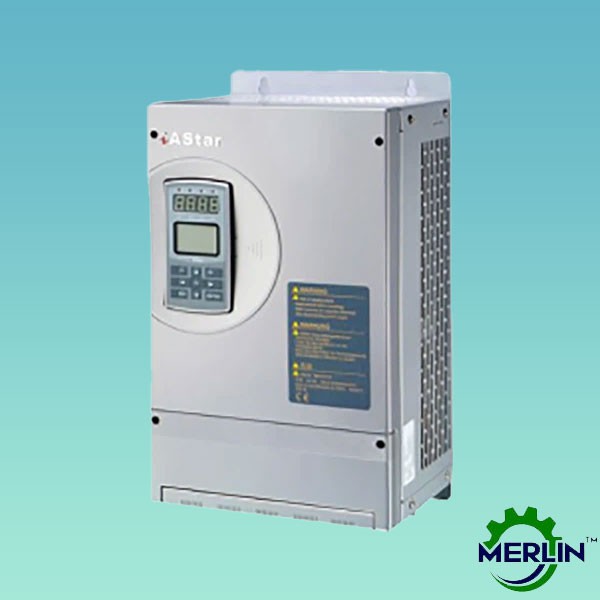

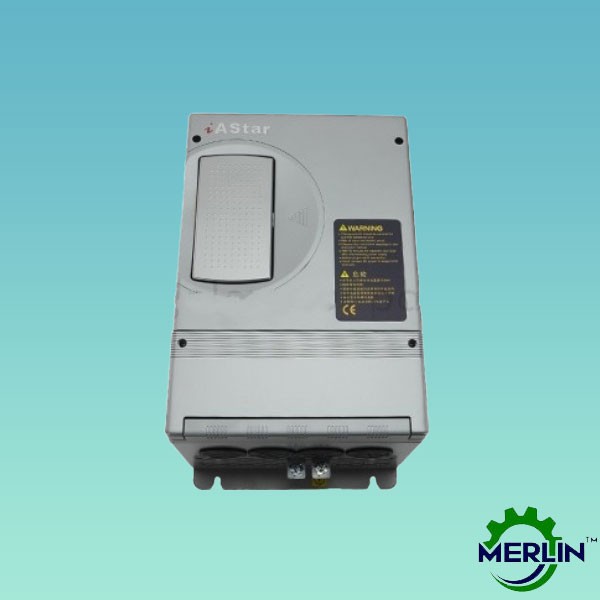

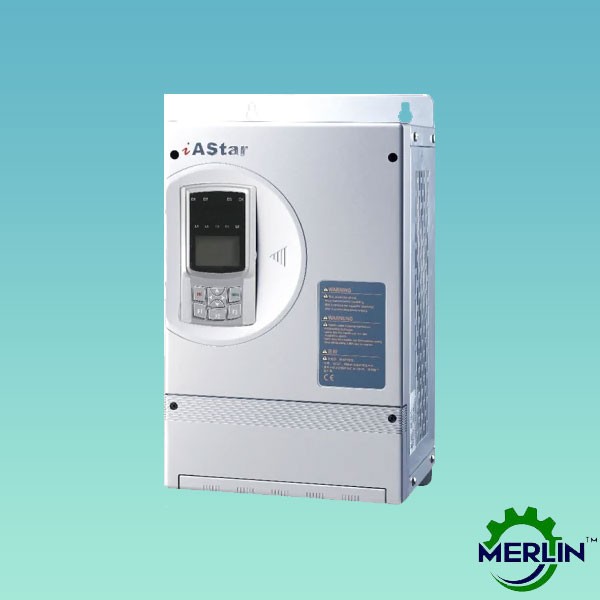

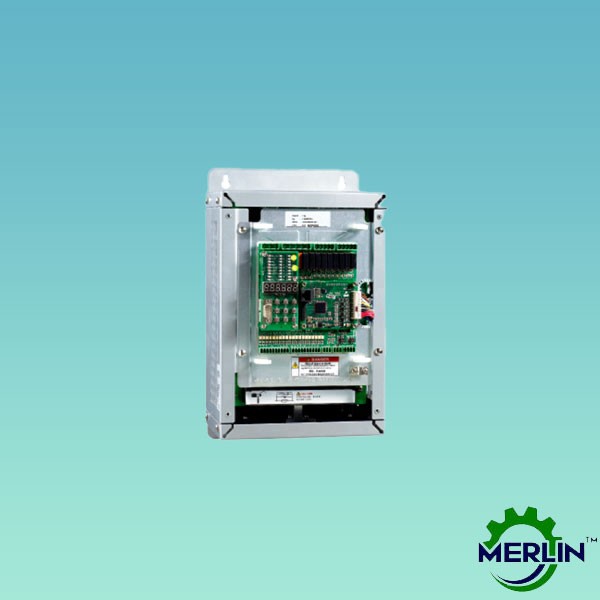

AS320 Series Elevator Inverter (Close Loop)

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"

Key Features:

• Employs a 32-bit MCU for enhanced speed control, ensuring precise and accurate performance.
• Utilizes a PIM module to minimize switch-related losses, prolonging the inverter's lifespan.
• Supports a single main contactor solution and accommodates both gear and gearless motor systems.
• Innovative Zero-speed torque compensation technology delivers smooth starting ride quality without the need for additional weighing devices.
• Implements close-loop vector technology for superior control and performance.
• Incorporates new PWM dead-zone compensation technology, minimizing energy loss during operation.
• Integrates dynamic PWM carrier modulation technology to reduce motor noise for a quieter operation.
• Certified with CE and UL, ensuring compliance with international safety and quality standards.

Specification Data

Model AS320	Rated capacity (kVA)	Rated output current (A)	Adaptation rated power of motor (kW)	Model AS320	Rated capacity (kVA)	Rated output current (A)	Adaptati rated power of motor (kW)
200V-level frequency converter				400V-level frequency converter
2S01P1	2.3	6.0	1.1	4T01P1	2.7	3.5	1.1
2S02P2	4.6	12	2.2	4T02P2	4.7	6.2	2.2
2S03P7	6.9	18	3.7	4T03P7	6.9	9	3.7
2S05P5	9.5	25	5.5	4T05P5	8.5	13	5.5
2S07P5	12.6	33	7.5	4T07P5	14	18	7.5
2S00P11	17.9	47	11	4T0011	18	27	11
2S00P15	23	60	15	4T0015	24	34	15
2S18P5	29	75	18.5	4T18P5	29	41	18.5
